Stokes package on the Unitree Go2
SHEP
SHEP is the Stokes Robotics robot dog package built on the Unitree Go2, set up for your industry and job, with curriculum and training options for schools, agencies, and companies.
15 kg
Weight
3.7 m/s
Top speed
1 to 4 h
Runtime
~8 kg
Payload
Written quotes for purchasing approval
Headquarters in Carl Junction, Missouri, USA
Curriculum and operator training available
Overview
SHEP at a glance
01
Set up for the job
Stokes secondary development configures SHEP for the industry and task it will handle.
02
Sees in 3D
An ultra-wide-angle 3D LiDAR and an HD camera support obstacle avoidance on the Air, Pro, X, and EDU.
03
Built for classrooms
Pairs with our STEMBOTICS curriculum license, from a team writing robotics curriculum since 2013.
04
Ready for public safety
ENT, ENT Plus, and ENT MTPTZ add a screen remote and dual communication links, with thermal imaging on ENT MTPTZ.
What it is
A working robot dog, set up for your job before it ships

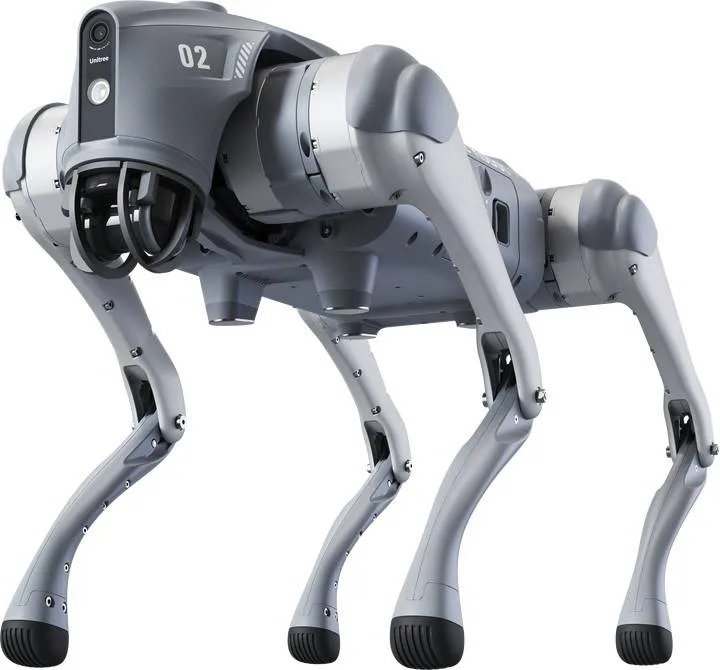

SHEP starts with the Unitree Go2 and adds Stokes Robotics secondary development on top. The result is a compact quadruped robot that arrives set up for the industry and task it will handle.
Unitree sells the Go2 in several configurations. The Air and Pro run the manufacturer’s built-in functions. The X and EDU support secondary development, and the ENT versions add equipment for industry and public safety work. SHEP is offered on all 11.
Where SHEP works
Built for three kinds of programs
K-12 and CTE classrooms
Students program a walking robot and watch their code move it over real terrain.
Corrections and public safety
A remote-operated robot with live video, and on ENT Plus, a searchlight and voice broadcast.
Industrial inspection
Thermal imaging and gas sensing options for equipment and site inspection work.
Specifications
SHEP specifications
Figures come from Unitree Robotics published specifications and Stokes Robotics product data. Figures vary by configuration.
| Specification | SHEP (Unitree Go2) |
|---|---|
| Size and weight | |
| Standing (L × W × H) | 700 × 310 × 400 mm |
| Crouching (L × W × H) | 760 × 310 × 200 mm |
| Weight with battery | About 15 kg |
| Performance | |
| Speed | 0 to 2.5 m/s (Air), 0 to 3.5 m/s (Pro), 0 to 3.7 m/s (X and EDU) |
| Payload | About 7 kg (Air), about 8 kg (other versions), 10 kg limit |
| Climbing drop height | About 15 cm (Air), about 16 cm (other versions) |
| Maximum slope | 30° (Air), 40° (other versions) |
| Maximum joint torque | About 45 N·m (Pro, X, and EDU) |
| Joint motors | 12, with heat pipe cooling |
| Power | |
| Battery | 8000 mAh standard (X), 15000 mAh long-life (EDU). Air and Pro include the required upgrade to a long-life battery plus one extra long-life battery |
| Runtime | 1 to 2 hours (standard battery), 2 to 4 hours (long-life battery) |
| Charger | 33.6 V 3.5 A standard (Air and Pro), 33.6 V 9 A fast charge (X and EDU) |
| Sensing and computing | |
| LiDAR | Ultra-wide-angle 3D LiDAR with obstacle avoidance |
| Camera | Wide-angle HD camera |
| Depth camera | Intel RealSense D435i (EDU) |
| Computing | 8-core CPU (Pro, X, and EDU). EDU expansion dock: 40 TOPS NVIDIA Orin Nano (EDU Standard) or 100 TOPS NVIDIA Orin NX (EDU Plus) |
| Navigation LiDAR | Livox Mid-360 or Hesai XT16 with navigation algorithms (EDU Plus options) |
| Connectivity and development | |
| Wireless | Wi-Fi 6 dual-band, Bluetooth 5.2. 4G module (Pro, X, and EDU), with built-in eSIM on X and EDU |
| App | HD video, remote control, and graphical programming |
| Development | Secondary development on X and EDU, with robot models and simulation interfaces for environments such as Isaac Sim |
| Industry and public safety (ENT) | |
| Remote | Controller with screen (ENT, ENT Plus, ENT MTPTZ) |
| Communication | 5.8 GHz main link with 4G backup (ENT, ENT Plus, ENT MTPTZ) |
| Cameras | Dual 1080p, 120° wide-angle, with four fill lights (ENT, ENT Plus, ENT MTPTZ) |
| ENT Plus | 30 W, 3000-lumen searchlight, red and blue warning lights, and voice broadcast |
| ENT MTPTZ | Three-axis stabilized dual-light gimbal with 640 × 512 thermal imaging |
| ENT GAS | Based on Go2 EDU, with a two-handed remote and temperature, humidity, oxygen, carbon monoxide, carbon dioxide, methane, hydrogen sulfide, and benzene sensing |
| Warranty | |
| Coverage | 6 months (Air), 1 year (Pro, X, EDU, ENT, and ENT Plus) |
Source: Unitree Robotics published specifications and Stokes Robotics product data for the Go2 series. Configuration options change what is installed. Your quote lists the exact configuration.
Choose your starting point
SHEP or Unitree Go2
Both are built on the same Go2 platform. The difference is the Stokes development that comes with SHEP.
Stokes package
SHEP
Hardware
Unitree Go2, 11 configurations
Stokes development
Included, set up before delivery
Secondary development
Stokes development on every configuration, plus your own code on X and EDU
Best for
Schools, agencies, and companies that want the robot set up for a specific job
Base robot
Unitree Go2
Hardware
Unitree Go2, 11 configurations
Stokes development
Not included
Secondary development
X and EDU configurations only, per Unitree
Best for
Teams with their own developers, or demonstrations using built-in functions
What's included
Out of the box, and what you can add
SHEP robot dog
Unitree Go2, configuration you choose
Stokes secondary development
Set up before delivery
Smart battery
Standard or long-life, by configuration
Charger
Standard or fast charge, by configuration
Remote controller
Handheld or screen remote, by configuration
Battery and controller upgrade
Included with Air and Pro configurations
Each Stokes package starts with the base robot and the standard hardware the manufacturer ships with it, such as the battery and charger. Stokes Robotics then completes the secondary development for the job the robot will do and has everything set up before delivery. Your quote lists the exact configuration and contents, so your purchasing team knows what's arriving before anything is ordered.
Depending on the robot, you can add onsite setup and training, online operator training, a connectivity package with its own stand-alone network and touch-screen control, a STEMBOTICS curriculum license for classroom programs, or a battery and controller upgrade on select quadrupeds. Tell us which ones your team needs and we'll include them in the same quote.
What Stokes Robotics adds
More than the hardware
Secondary development
Our Stokes packages come with software and hardware set up for the way you will use the robot.
Curriculum
Our team has written STEM curriculum since 2005 and robotics curriculum since 2013.
Training
Onsite and online training for the people who run the robot day to day.
Buying
Two ways to buy
Buy online
Just need the robot?
- Find the base robot in our shop by its Unitree or AgileX model name
- Choose your configuration
- Check out securely online
- Add training or a Stokes package later through a quote
Request a quote
Buy through your organization
- Tell us where the robot will work
- We talk through your site and configuration
- You get a written quote for approval
- The robot ships once the order is placed
Questions
SHEP FAQ
SHEP is built on the same Go2 configurations and includes Stokes Robotics secondary development, set up for the way you will use it. The Unitree Go2 is sold without Stokes development.
Stokes secondary development elevates the robot for a specific industry and job. Depending on how you will use SHEP, it can include curriculum, training, and development that enhances what the robot can do. Tell us where the robot will work and we will match the development to it.
Yes. SHEP is available on the Go2 ENT configurations built for industry and public safety work. ENT Plus adds a 30 W searchlight, red and blue warning lights, and voice broadcast, and ENT MTPTZ adds a thermal imaging gimbal. Stokes Robotics law enforcement packages are non-lethal only.
Unitree lists 1 to 2 hours on the standard 8000 mAh battery and 2 to 4 hours on the 15000 mAh long-life battery. EDU comes with the long-life battery, and the Air and Pro include the required upgrade to a long-life battery plus one extra.
No. The STEMBOTICS curriculum license, onsite setup and training, and online training are optional add-ons. Choose the ones you want in your quote request.
SHEP is sold through a quote, so your configuration, add-ons, and training are confirmed before anything is ordered. Request a quote and our sales team will build it with you. If you only need the robot, the Unitree Go2 can be bought online.
Related robots
You might also consider
Aero-W
Aero-W is the Stokes Robotics wheel-legged security and inspection robot dog package built on the Unitree A2-W, used in our Security and Inspections Robotic Assistant System (SIRAS).
Aero
Aero is the Stokes Robotics security and inspection robot dog package built on the Unitree A2, used in our Security and Inspections Robotic Assistant System (SIRAS).
SHEP-W
SHEP-W is the Stokes Robotics wheel-legged robot dog package built on the Unitree Go2-W, set up for inspection, public safety, and research work before it ships.
Bear
Bear is the Stokes Robotics corrections robot dog package built on the Unitree B2, part of our Corrections Officer Robotic Assistant System (CORAS®) packages.
Next step
Put SHEP to work
Tell us where the robot will work and our sales team will put together a quote.
