AgileX autonomous navigation kit
AgileX Scout Mini R&D Kit
The AgileX Scout Mini R&D Kit is a ready-to-develop autonomous robot that pairs the Scout Mini chassis with a LiDAR, depth camera, and NVIDIA computer, in Lite and Pro versions.
Scout Mini
Chassis
10 km/h
Top speed
2D or 3D
LiDAR
Lite, Pro
Versions
Starting at $21,000.00
Paying with a purchase order or need a formal quote for approval? Request a quote and our sales team will build it with you.
Secure online checkout
Headquarters in Carl Junction, Missouri, USA
Curriculum and operator training available
Overview
AgileX Scout Mini R&D Kit at a glance
01
Navigation out of the box
High-precision localization and navigation, autonomous mapping, and obstacle avoidance.
02
Two sensor levels
Lite uses an EAI G4 LiDAR. Pro steps up to a Velodyne VLP-16 3D LiDAR.
03
NVIDIA computing
A Jetson Nano on Lite and an AGX Xavier on Pro.
04
Open for research
ROS and Autoware secondary development, with complete development documents.
What it is
An autonomous robot ready for research

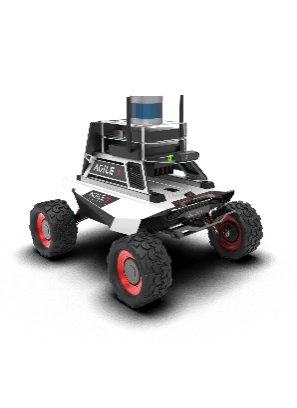

The AgileX Scout Mini R&D Kit pairs the Scout Mini four-wheel-drive chassis with a LiDAR, an Intel RealSense D435 depth camera, an NVIDIA computer, a display, and a router. It arrives ready for localization, mapping, navigation, and obstacle avoidance work.
The Lite version uses a Jetson Nano and an EAI G4 LiDAR. The Pro version steps up to an AGX Xavier and a Velodyne VLP-16 3D LiDAR rated for up to 100 m.
Where the kit works
Built for three kinds of programs
University research labs
A ready base for SLAM, navigation, and autonomy research.
Advanced robotics courses
Students start with a working robot and complete development documents.
Outdoor autonomy testing
An all-terrain chassis with a long-range 3D LiDAR on the Pro.
Specifications
Scout Mini R&D Kit specifications
Figures come from AgileX Robotics published specifications, the component makers, and Stokes Robotics product data. Figures vary by version.
| Specification | AgileX Scout Mini R&D Kit |
|---|---|
| Chassis | |
| Platform | AgileX Scout Mini, four-wheel independent drive |
| Top speed | Up to 10 km/h |
| Battery | 24 V 15 Ah lithium |
| Kit hardware | |
| Lite computer | NVIDIA Jetson Nano |
| Pro computer | NVIDIA AGX Xavier |
| LiDAR | EAI G4 mid-short range LiDAR (Lite), Velodyne VLP-16 long-range 3D LiDAR (Pro) |
| Depth camera | Intel RealSense D435 |
| Display and network | HD display and router (GL-AR750 on Lite) |
| Velodyne VLP-16 (Pro) | |
| Channels | 16 |
| Range | Up to 100 m |
| Field of view | 360° horizontal, 30° vertical |
| Software | |
| Functions | High-precision localization and navigation, autonomous mapping, and obstacle avoidance |
| Software | ROS with gmapping SLAM and move_base navigation, multi-point navigation |
| Development | Complete development documents, with ROS and Autoware secondary development |
Source: AgileX Robotics published specifications and Stokes Robotics product data. Configuration options change what is installed. Your quote lists the exact configuration.
Choose your starting point
What's included
Out of the box, and what you can add
Scout Mini robot chassis
AgileX
Computer
NVIDIA Jetson Nano (Lite) or AGX Xavier (Pro)
LiDAR
EAI G4 (Lite) or Velodyne VLP-16 (Pro)
Depth camera
Intel RealSense D435
Display and router
HD display and router
What Stokes Robotics adds
More than the hardware
Secondary development
Our Stokes packages come with software and hardware set up for the way you will use the robot.
Curriculum
Our team has written STEM curriculum since 2005 and robotics curriculum since 2013.
Training
Onsite and online training for the people who run the robot day to day.
Buying
Two ways to buy AgileX Scout Mini R&D Kit
Buy online
Checkout now
- Choose your configuration and add-ons
- Check out securely online
- We prepare your robot before it ships
- Training is scheduled if you added it
Request a quote
Buy through your organization
- Tell us where the robot will work
- We talk through your site and configuration
- You get a written quote for approval
- The robot ships once the order is placed
Questions
AgileX Scout Mini R&D Kit FAQ
The Lite uses an NVIDIA Jetson Nano and an EAI G4 mid-short range LiDAR. The Pro uses an NVIDIA AGX Xavier and a Velodyne VLP-16 3D LiDAR rated for up to 100 m.
Yes. This kit includes the Scout Mini chassis. If you already have a compatible chassis, the AgileX R&D Kit is sold without one.
AgileX builds the kit on ROS, with gmapping SLAM, move_base navigation, and multi-point navigation, plus complete development documents for ROS and Autoware secondary development.
University labs, research teams, and advanced courses that want an autonomous robot ready for navigation work without building the sensor stack first.
Yes. We offer onsite setup and training and online training for the people who will run the Scout Mini R&D Kit, before and after the sale. Both are optional add-ons you can choose at checkout or in your quote request.
Yes. Choose your configuration, add-ons, and quantity, then check out online. If your school, agency, or company needs a purchase order or a formal quote, request a quote and our sales team will build it with you.
